To design, manufacture and install a bespoke kitchen ventilation canopy and extraction system.
The Solution

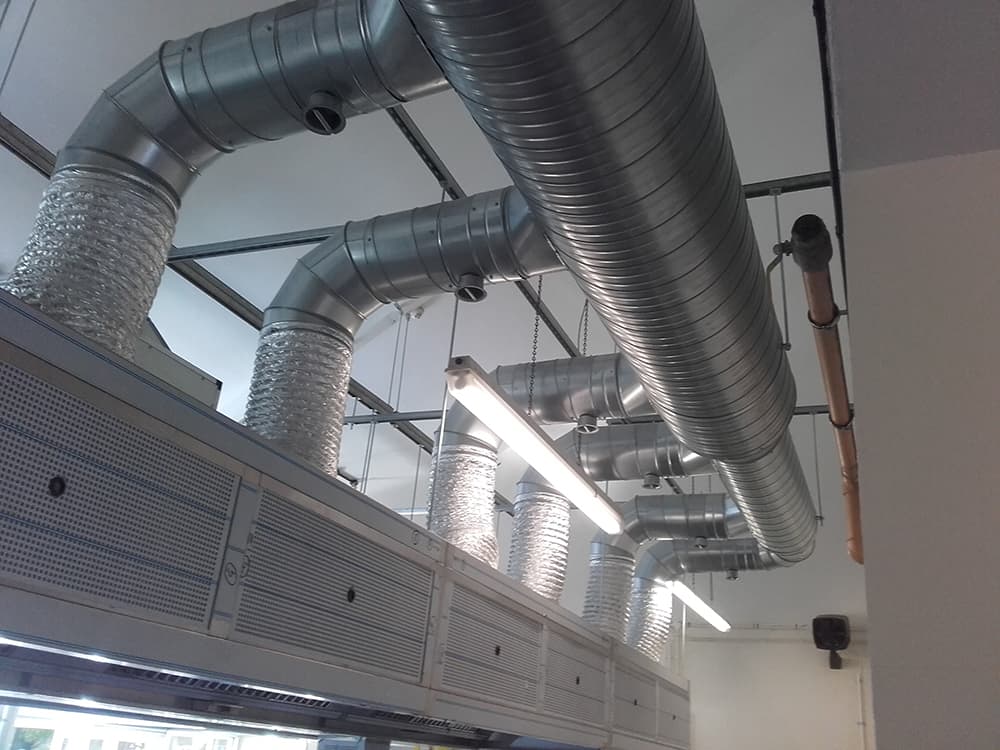

Vortex designed, manufactured and installed a bespoke extract canopy and extraction system at Bibby Financials new staff canteen in Banbury. The extraction included fire rated ductwork and discharge acoustic louvre.
Features
Bespoke canopy compliant to DW172 – featuring UL listed baffle grease separators, integral grease capture containers, high efficiency LED lighting, fire rated duct conforming to method 3 requirements BS 5588 part 9 and tested to BS 476 part 24.
To discuss a similar project, contact Corsair Engineering today.
Vortex designed, manufactured and installed a bespoke extract and supply air canopy at Ole & Steen’s new site in Oxford. The canopy had to be mounted over 2.5m high ovens and incorporate a safe access walkway for the maintenance / cleaning of the associated ductwork / plant.
Features
Bespoke canopy compliant to DW172 – featuring UL listed baffle grease separators, integral grease capture containers, high efficiency LED lighting, tool-free removable supply diffusers and safe access system.
Safe Access System
Manufactured at Corsair. Non-slip plate, stainless steel support channels, S.W.L 150kg.
Ideal access for duct cleaning above canopies.
To discuss a similar project, contact Corsair Engineering today.
Corsair was approached by one of its leading distributors to work with them in the tendering process for the high-profile brand new City Campus for Sunderland College, the latest and most advanced of its four campus sites.
Materials: 304 and 430 Grade s/s Site Time: 3 weeks
The Solution
Involvement at the outset was key to the successful conclusion of the project, ensuring that the Vortex Atlantic Ceiling formed an integral part of the structure of the training kitchens. The integrated extraction, fresh air and lighting solution effectively did away with the requirement for a suspended ceiling and all associated costs.
The Atlantic Ceiling’s innovative design of commonly-sized panels for lighting, fresh air, extract and plain tiles provides unique flexibility in the world of ventilated ceilings. Having to reconfigure the cookline and room layout needs no longer to be viewed as a daunting and costly task.
With the supply of integrated SDUs, wall cupboards and rodded shelves in addition to the Atlantic Ceiling and the Cobra ventilation canopies, Corsair had a major part to play in the successful delivery of this prestigious facility.
Call Corsair to see how we can use our broad portfolio of solutions to help with your next project.
So, imagine the situation: the summer mad-rush in its final throes and a builder waiting on site for his ventilation contractor to turn up and install the full system solution. No answers to his calls or his emails and then an email arrives on the installation day saying they had stopped production and would not be able to fulfil the order!! Panic calls to all and sundry without success…
Until, one of Corsair’s longest-standing distributors got the call and in turn made the call to Corsair.
